K-Means Clustering

The k-means algorithm takes a bunch of unlabeled points and tries to group them into “k” number of clusters.

The “k” in k-means denotes the number of clusters you want to have in the end. If k = 5, you will have 5 clusters on the data set.

How it works?

1. Determine K value by Elbow method and specify the number of clusters K

2. Randomly assign each data point to a cluster

3. Determine the cluster centroid coordinates

4. Determine the distances of each data point to the centroids and re-assign each point to the closest cluster centroid based upon minimum distance

5. Calculate cluster centroids again

6. Repeat steps 4 and 5 until we reach global optima where no improvements are possible and no switching of data points from one cluster to other.

Quick Run

Import necessary Python packages

import numpy
import matplotlib.pyplot as plt
from sklearn.metrics import accuracy_score
from sklearn.cluster import KMeans

Define a list containing the distance and the score of similarity in expression profile between the 2 genes

xs =      [[-53, -200.78],
          [117, -267.14],
          [57, -163.47],
          [16, -190.30],
          [11, -220.94],
          [85, -193.94],
          [16, -182.71],
          [15, -180.41],
          [-26, -181.73],
          [58, -259.87],
          [126, -414.53],
          [191, -249.57],
          [113, -265.28],
          [145, -312.99],
          [154, -213.83],
          [147, -380.85],
          [93, -291.13]]

Implementation of K-Means Clustering

model = KMeans(n_clusters = 2)
model.fit(xs)
model.labels_
colormap = numpy.array(['Red', 'Blue'])
z = plt.scatter([i[0] for i in xs], [i[1] for i in xs], c = colormap[model.labels_]

Accuracy estimates Define a list with know answer if the gene pair belongs to the same operon (1) or different operons (0)

ys =     [1,
          1,
          1,
          1,
          1,
          1,
          1,
          1,
          1,
          1,
          0,
          0,
          0,
          0,
          0,
          0,
          0]

Compare cluster labels with know answer

accuracy_score(ys,model.labels_)

Out[1]: 0.9411764705882353

Traditional Approach

Import necessary Python packages

import numpy
import matplotlib.pyplot as plt
from sklearn.metrics import accuracy_score
from sklearn.cluster import KMeans

Define a list containing the distance and the score of similarity in expression profile between the 2 genes

xs =      [[-53, -200.78],
          [117, -267.14],
          [57, -163.47],
          [16, -190.30],
          [11, -220.94],
          [85, -193.94],
          [16, -182.71],
          [15, -180.41],
          [-26, -181.73],
          [58, -259.87],
          [126, -414.53],
          [191, -249.57],
          [113, -265.28],
          [145, -312.99],
          [154, -213.83],
          [147, -380.85],
          [93, -291.13]]

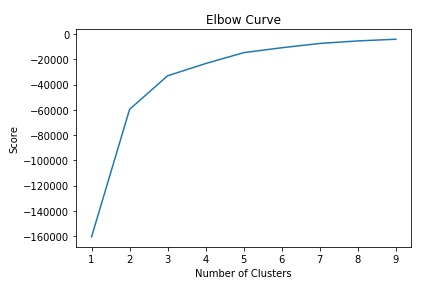

Find out the optimal number of clusters using the elbow method

Nc = range(1, 10)
kmeans = [KMeans(n_clusters=i) for i in Nc]
kmeans
score = [kmeans[i].fit(xs).score(xs) for i in range(len(kmeans))]
score
plt.plot(Nc,score)
plt.xlabel('Number of Clusters')
plt.ylabel('Score')
plt.title('Elbow Curve')
plt.show()

Implementation of K-Means Clustering

model = KMeans(n_clusters = 2)
model.fit(xs)
model.labels_
colormap = numpy.array(['Red', 'Blue'])
z = plt.scatter([i[0] for i in xs], [i[1] for i in xs], c = colormap[model.labels_])

Accuracy estimates Define a list with know answer if the gene pair belongs to the same operon (1) or different operons (0)

ys =     [1,
          1,
          1,
          1,
          1,
          1,
          1,
          1,
          1,
          1,
          0,
          0,
          0,
          0,
          0,
          0,
          0]

Compare cluster labels with know answer

accuracy_score(ys,model.labels_)

Out[1]: 0.9411764705882353
